Professional on vinyl flooring
| Place of Origin: | China |
|---|---|
| Brand Name: | ESTY |
| Certification: | ISO/SGS |
| Model Number: | ESD |
| Document: | Product Brochure PDF |
| Minimum Order Quantity: | 100SQM |
| Price: | price discussion |
| Packaging Details: | 28pcs/box ,32-36box/pallets,13pallests/20GP |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 1000000 Square Meter/Square Meters per Month |
| Product Name: | Plastic Floor Anti Static Pvc Flooring Anti Static Tiles For Data Center | OEM: | Available |
|---|---|---|---|
| Feature: | Long Service Life,anti Slip,waterproof | Thickness: | 2-3mm |
| Size: | 600*600mm,590*590mm,610*610mm | MOQ: | 100SQM |
| Highlight: | anti static flooring,anti static vinyl flooring |
||

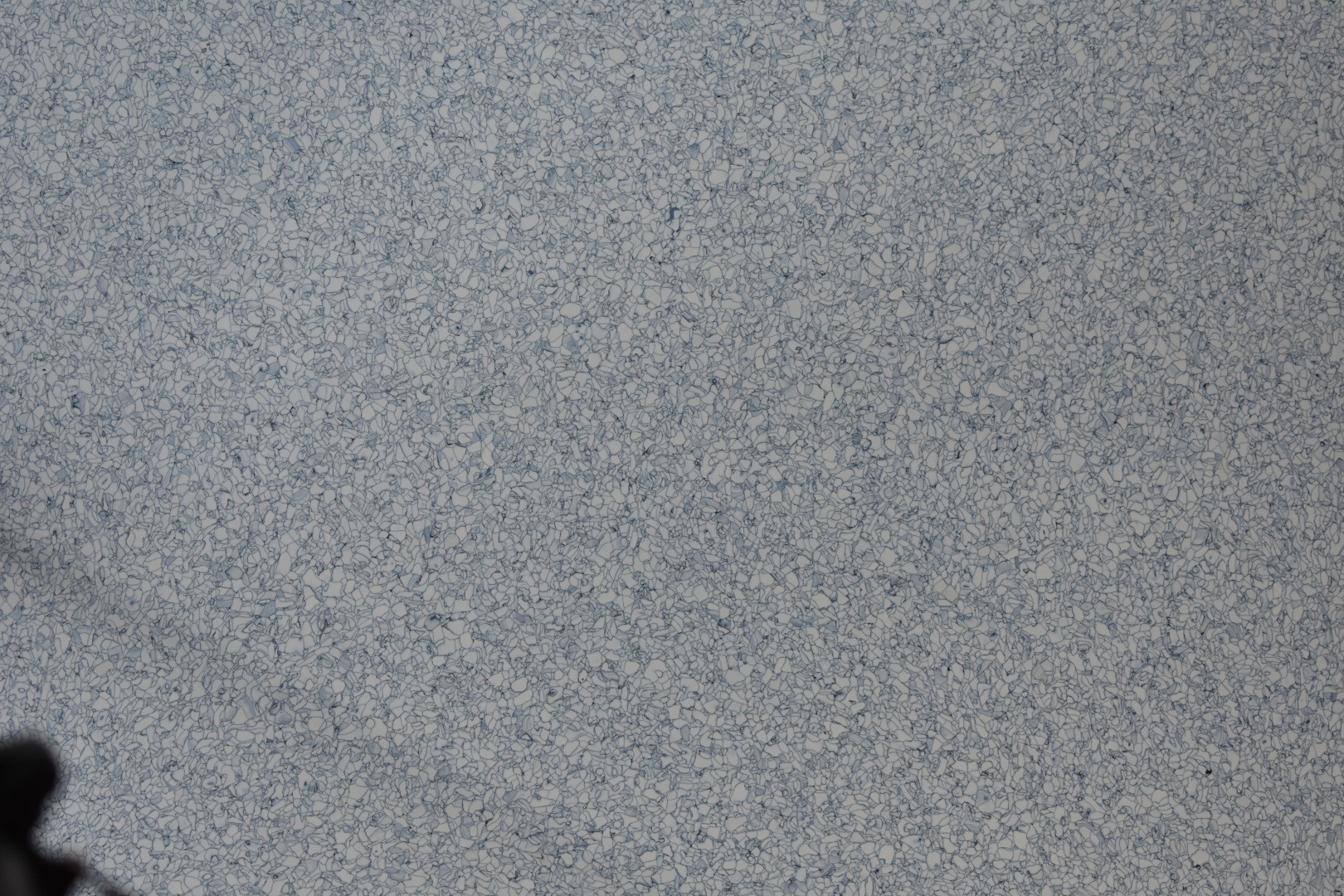

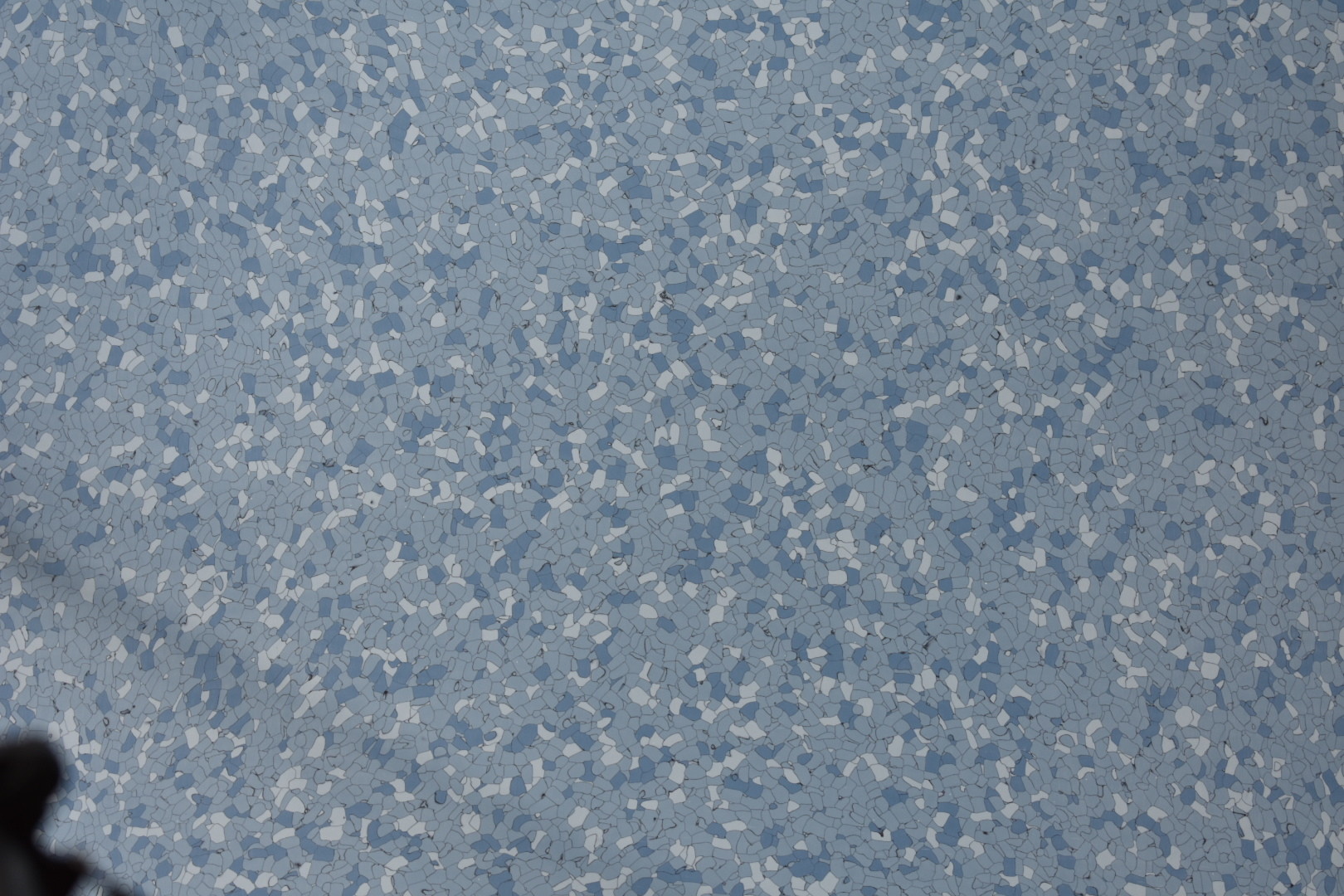

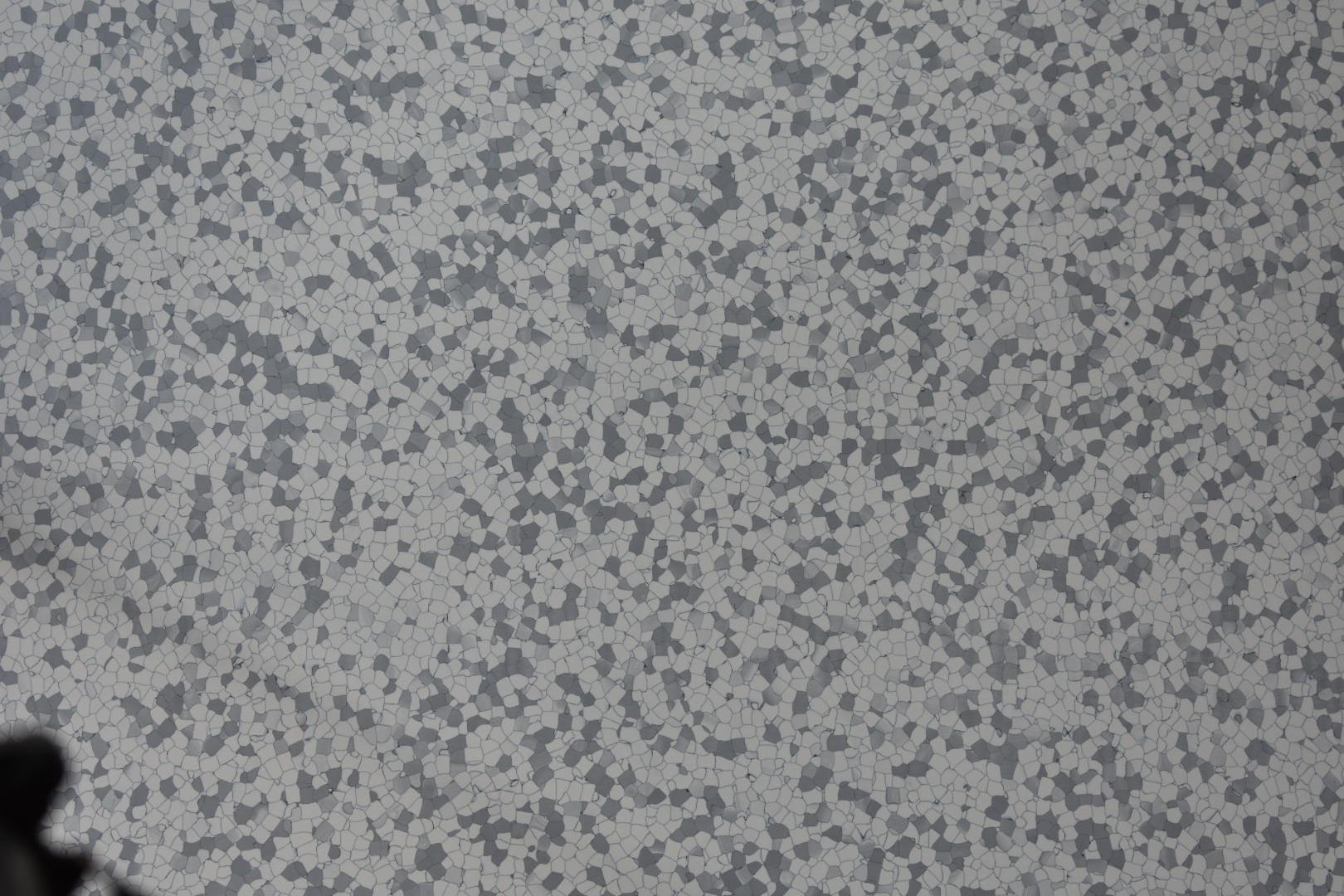

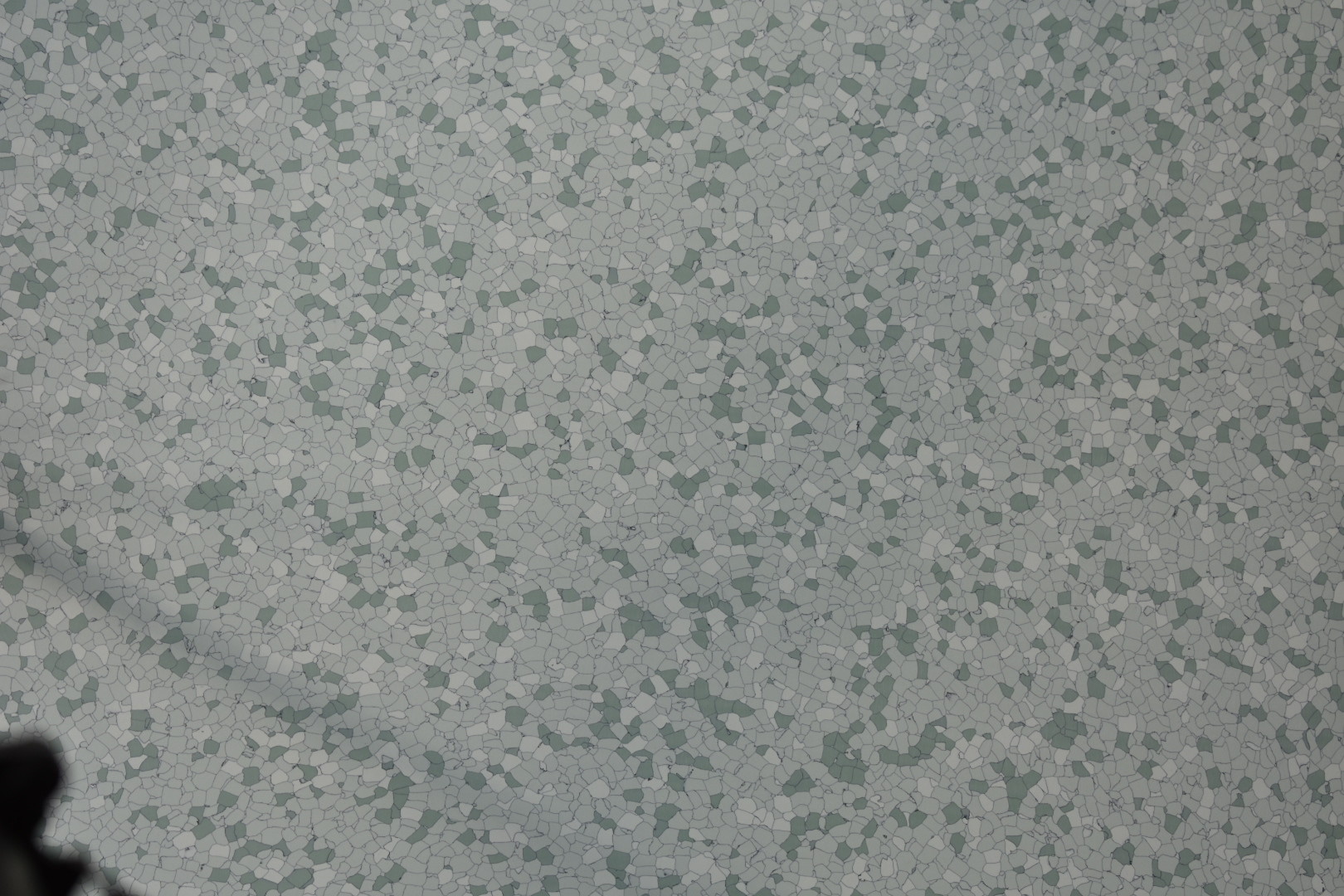

Permanent Anti-static PVC Tile has permanent anti-static function, because it uses conductive static network formed at the interface of plastic particles. Its appearance looks like the pattern of marble, thus it has a good decoration effect .
Applications
1. Electronics
2. Mocroelectronics
3. Telecommunications environment
4. Raised access floor
5. Health equipment
6. Clean room
7. Computer room
| Product performance | ESD VINYL Tiles | |
| Thickness EN428 | 2.0mm 2.5mm 3.0mm | |
| Size EN426 | 600*600mm | 610*610mm |
| Weight EN430 | 3.8kg/2.0mm 4.8kg/2.5mm 5.8kg/3.0mm | |
| Resistance value DIN51953 ASTM F=150 OR NFPA99 |
Conductivity type floor tiles | Dissipative floor tiles |
| 2.5*104~106ohm | 106~108ohm | |
| Static voltage decay phase SJ/T10694-2006(+-1000V+-100V≦2s |
Average 0.4s | Average 0.4s |
| Friction voltage SJ/T10694-2006(｜V｜<100V) | Average 70 | Average 70 |
| Combustion resistance rating DIN4102 | B1 | B1 |
| Combustion performance SJ/T11236-2001(<10s,Achieve FV 0 level) |
Average 0.35s｜FV-0 | Average 0.35s｜FV-0 |
| Abrasion quantity SJ/T11236-2001(≦0.020g/cm 21000r) |
Average 0.014 | Average 0.014 |
| Wear resistance EN660pt2 | T group is less than 2.0 cubicmillimeter | T group is less than 2.0 cubicmillimeter |
| Caster wheel rolling EN425 | Unaffected | Unaffected |
| Degree of residual sag EN433/DIN51955 | 0.03mm (2.0mm) 0.035mm(2.5mm) 0.04mm (3.0mm) |
0.03mm (2.0mm) 0.035mm(2.5mm) 0.04mm (3.0mm) |
| Dimensional Stability EN434 | ≧0.10% | ≧0.10% |
| Color Fastness ISO105BO2 | At least 6 | At least 6 |
| Resistance to Chemicals DIN423/DIN1958 | Offers excellent resistance ask for special sheet | Offers excellent resistance ask for special sheet |
| Impact Sound Absorption VLI,ISO104,ISO717 | Approx 2db | Approx 2db |
| Tandard for Health Care Facilities NFPA 99 | Confirms to the requirement of NFPA99 in effect at the tine of installation | |
| thickness | packing details |
| 2mm | 28pcs/box ,32-36box/pallets,13pallests/20GP,4500sqm/20GP |
| 3mm | 28pcs/box ,30-32box/pallets,13pallests/20GP,3200sqm/20GP |
